INTUWORX™ NSA52 5-Source Player

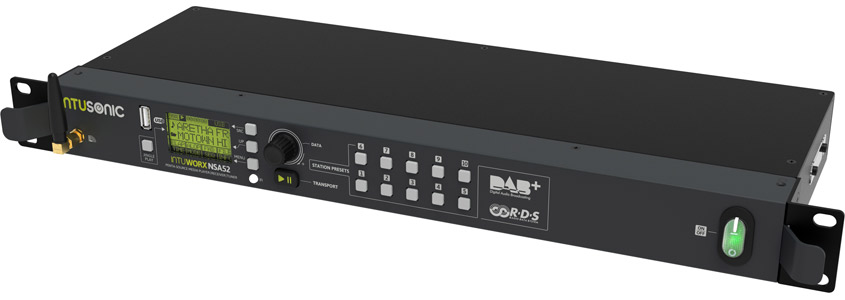

The INTUWORX™ NSA52 is a versatile audio source unit, combining a USB-based MP3 player with a FM Tuner, a DAB+ tuner, a wireless audio receiver and a jingle player – all packed in a sleek 19’’/1U case and operated via a clear and intuitive user interface built around a 124×64 pixel graphics display, with an included IR remote for enhanced comfort. The MP3 player is configurable, offering different sequence and loop modes, and the display of either tag content or file name. The LINKOUSTIC™ 5.0 wireless audio link connects flawlessly with compatible devices, and the DAB+ receiver offers the pristine sound of digital radio. The FM tuner offers RDS readout and a 10-station direct access keyboard allows to store the favourite FM and DAB+ stations. Unlike non-professional HiFi players, the NSA52 sports balanced outputs as well as unbalanced outputs, and a rear-side volume control to adapt to the following signal chain. The built-in jingle player with up to 4 jingles can play on demand or by schedule, and the 4 jingles can also be invoked by the external closure of the provided rear-panel contacts.

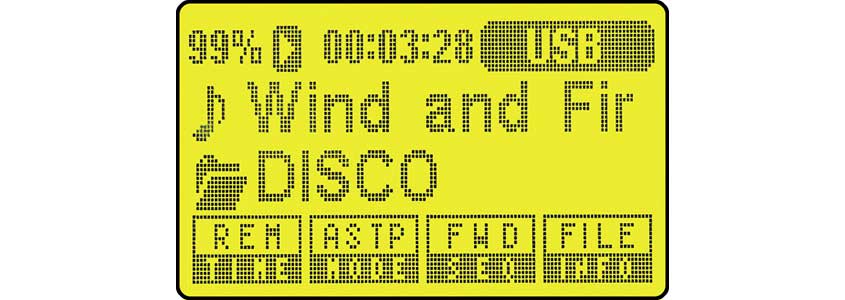

• User interface with 128×64 LCD graphics display

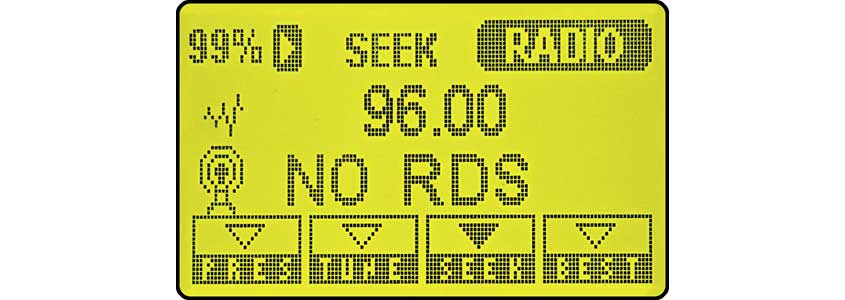

• FM Tuner with RDS readout and 10 programmable station presets

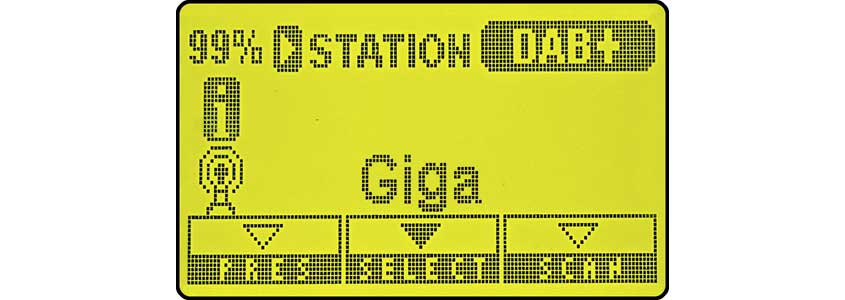

• DAB+ tuner with 10 programmable station presets
• USB media player/tuner with file/folder access, regular/random play sequence, elapsed/remain time mode, and tag/file name display options

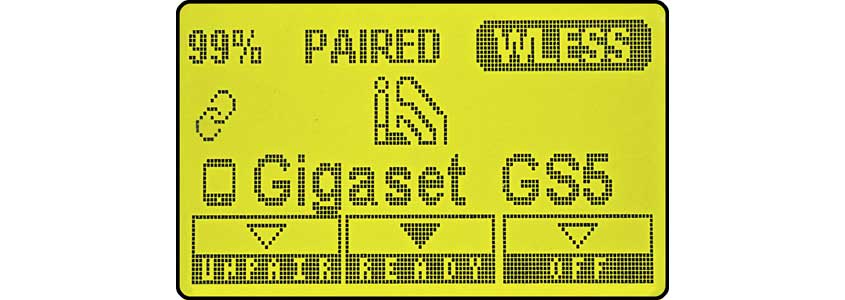

• LINKOUSTIC™ 5.0 wireless audio receiver with front-side antenna

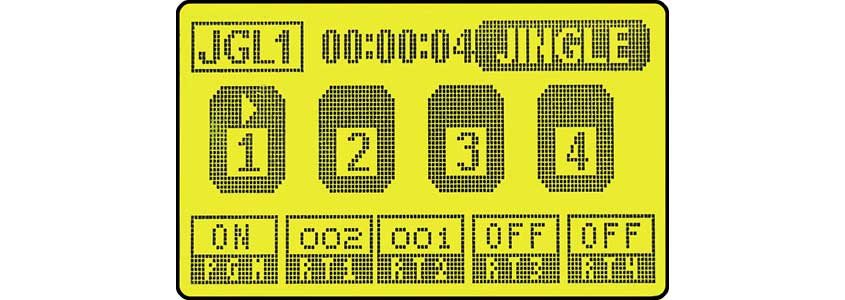

• Jingles player with 4 jingles and auto-ducking of the current program material; jingles can be manually invoked or via cycling schedule
• 4 hardware contacts for external jingle activation

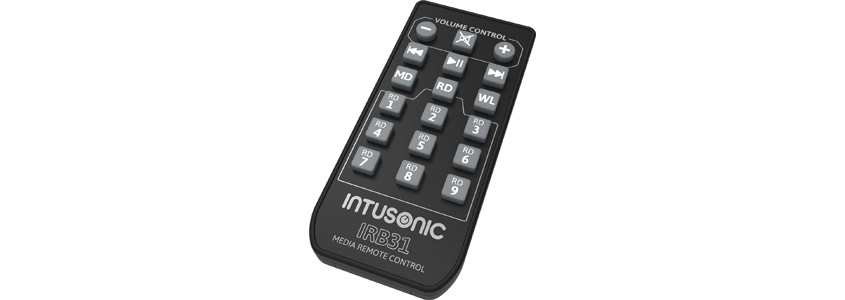

• All functions also remotely controllable via supplied IRB31 remote control

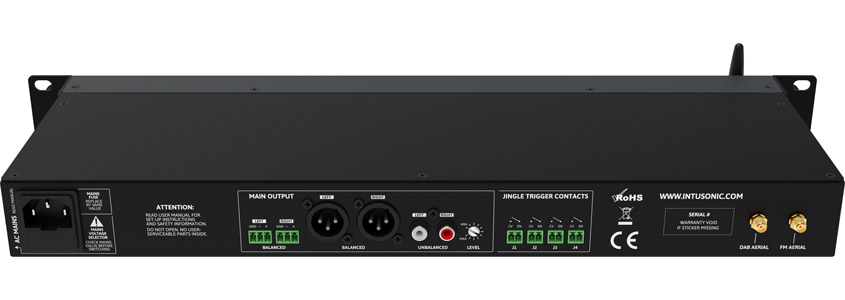

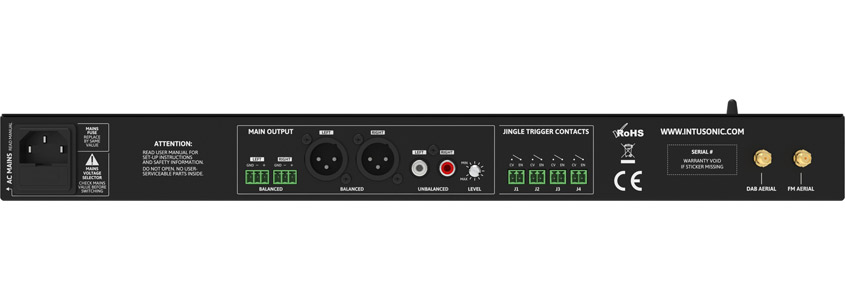

• Balanced main output on XLR and 3.5mm strips
• Unbalanced main output on RCA jacks
• Output volume control on rear panel
• Rear-panel antenna connections for both FM and DAB+ to integrate with building-supplied antennas
• Metal case with detachable rack ears and handles

• Sources: USB-PGM, USB-JGL, FM, DAB+, Linkoustic
• USB file types: MP3, WAV, FLAC, APE
• MPEG: 1/2/2.5L3-128/160/192/224/256/320/VBR
• Storage Media: FAT12/16/32/ExFAT, 64GB max
• Linkoustic™ frequency: 2.4GHz
• DAB+ frequency: Band III 174.928-239.200MHz
• AC IN: 115V/230~ 50/60Hz, max 12W
• Dimensions WxDxH: 482.6x180x44mm
• Weight: 2.5 kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU
EN55035:2017

LVD Directive 2014/35/EU
EN62368-1

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018
